这种玻璃后墙靠30cm深的鳍来稳定。壁球室的门向内打开（DIN左侧），并被侧面的铰链固定。

玻璃肋固定了玻璃后墙的角度安装在地板上，然后再安装地板，地板上25厘米x 35厘米的开孔被阳极氧化铝板覆盖。

ASB独立式玻璃后墙包括两块2.13mx2.75米玻璃面板和一扇90厘米宽门，为12mm安全玻璃制成。

这种玻璃后墙主要用于安装玻璃壁球场。
玻璃顶部配件，可以在任何时候安装。为了这个目的，有必要在足够高的侧壁位置安装横梁和合适的高度固定钢管，然后挂上顶部配件。因此，所有连接的细节都解决了。

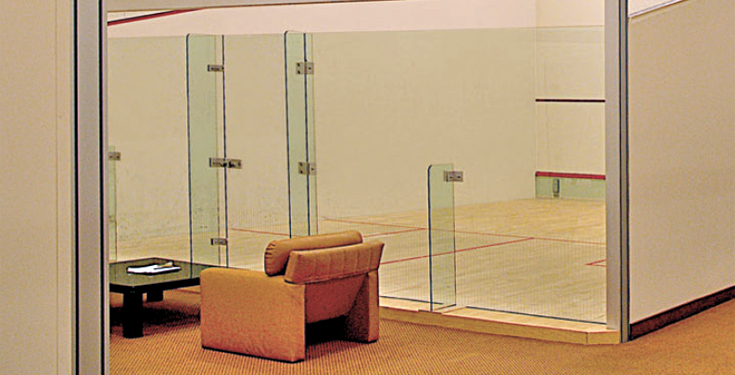

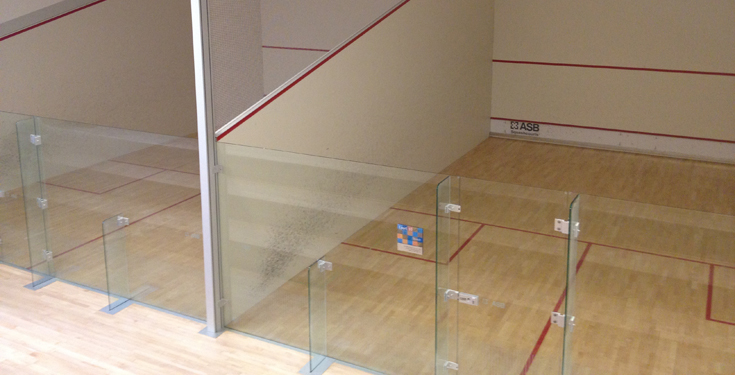

This glass back wall is stabilised with 30cm deep glass fins. The squash court door is opening (DIN left) to the inside and is fixed to hinges at the side.

The fins are fixed to the floor with angles and then the floor I installed. The opening in the floor with around 25cm x 35cm is covered with an anodised aluminium plate.

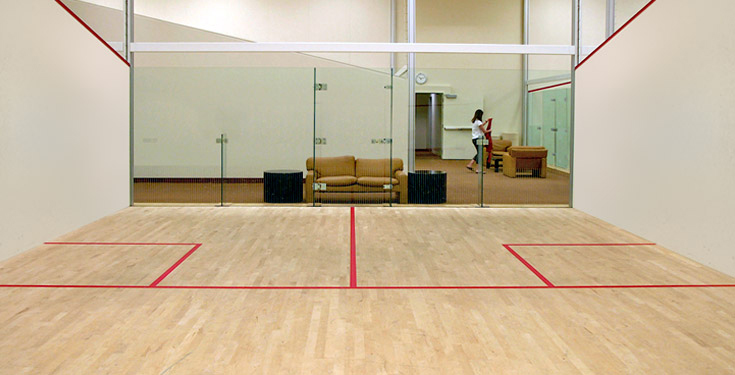

The ASB Freestanding GlassBackWall consists of two glass panels of 2.13m x 2.75m and a door, which is 90cm wide and made of 12mm safety glass.

This glass back wall is mostly used in connection with the installation of a glass court.

Glass headpieces can be installed at any time. For this purpose it is necessary to plan the supporting profiles at the side walls high enough and to fix a steel tube at the right height. The headpieces are then hung from the carrier. Thus all connection details are solved.
